Product description:

hydraulic cylinders are actuators that convert hydraulic energy into linear mechanical force. They have a compact structure, high output force, and smooth operation. They are the core components for performing actions such as pushing, pulling, lifting, and pressing in various mechanical and industrial systems, and are widely used in construction machinery, metallurgy, mining, shipping, and other fields.

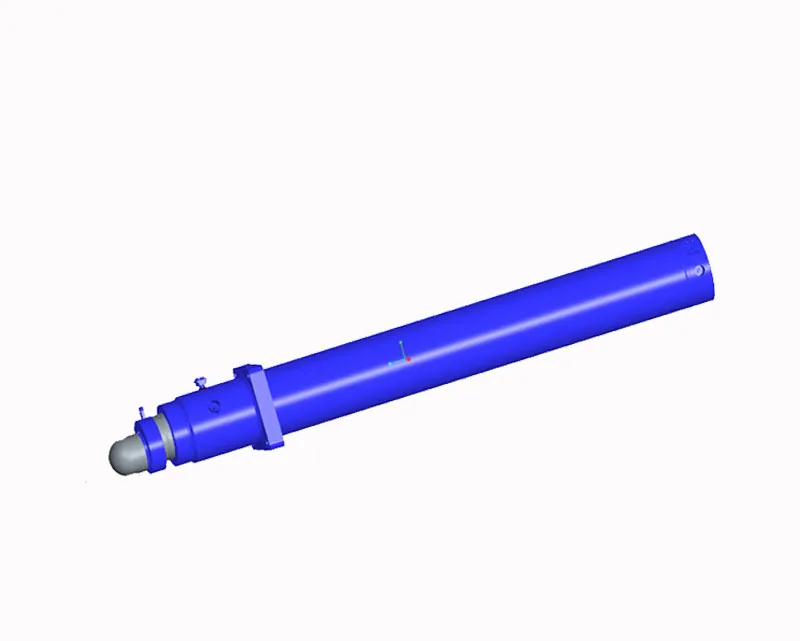

An Angular push cylinder is a specialized hydraulic actuator designed to provide angular or pivoting motion, widely used in construction machinery, mining equipment, material handling systems, and industrial automation. Unlike standard linear hydraulic cylinders, an angular push cylinder converts hydraulic pressure into angled or rotational motion, allowing it to control components such as booms, arms, buckets, or blades with high precision and strong force.

Parameters:

Pictures:

Structure and Working Principle

The angular push cylinder is composed of a cylinder barrel, piston, piston rod, connecting clevis, hinge pins, and high-performance sealing system. When hydraulic oil enters the cylinder under pressure, it pushes the piston to extend or retract. This linear force is transmitted through the hinge or linkage mechanism, generating an angular or tilting motion at the connected component.

This design allows precise control of motion angles, making it ideal for applications requiring controlled rotation, positioning, or lifting. The cylinder is engineered to withstand high hydraulic pressure, shock loads, and continuous operation, ensuring excellent reliability and operational safety.

Materials and Manufacturing Process

The cylinder barrel is manufactured from high-quality alloy steel and precision honed to achieve a smooth internal surface that minimizes seal wear and improves hydraulic efficiency. The piston rod is hard chrome plated or treated with QPQ nitriding, enhancing resistance to corrosion, abrasion, and impact.

Using CNC machining, robotic welding, and automatic heat treatment, every cylinder component is produced to tight tolerances and strict strength requirements. The advanced manufacturing process guarantees consistent quality, structural integrity, and long service life even under extreme working conditions.

Key Features and Advantages

Angular Motion Control: Provides precise and powerful angular or pivoting movement for complex mechanical applications.

High Pressure Capacity: Designed to handle working pressures up to 35 MPa or more, ensuring strong and stable operation.

Superior Sealing System: Equipped with high-quality seals from trusted brands such as NOK, Hallite, or Parker to prevent leakage and contamination.

Rugged and Durable Construction: Enhanced materials and surface treatments provide excellent resistance to wear, corrosion, and fatigue.

Compact and Space-Saving Design: Optimized geometry allows installation in confined or limited spaces.

Customizable Design: Cylinders can be customized for bore size, stroke length, angle range, mounting style, and connection type.

Smooth and Stable Performance: Advanced hydraulic design ensures low friction, precise motion control, and minimal vibration.

Working principle of hydraulic cylinder:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core executive component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

The angular push cylinder is widely used in:

Excavators, loaders, and bulldozers – for tilting, lifting, and adjusting working arms or buckets.

Cranes and lifting platforms – to control boom rotation and angle adjustment.

Agricultural and forestry machinery – for steering, lifting, or tool angle control.

Industrial automation equipment – for controlled angular actuation in mechanical systems.

Mining and marine machinery – for heavy-duty pushing and tilting operations under extreme conditions.

In each of these applications, the angular push cylinder delivers accurate movement, stable performance, and long-term reliability.

Quality Control and Testing

Each cylinder undergoes strict quality control at every production stage to ensure performance and safety. Common tests include:

Hydraulic pressure and leakage tests

Dimensional accuracy and surface roughness inspection

Coating adhesion and corrosion resistance testing

Fatigue and endurance testing under full load

Only cylinders that pass all tests are delivered to customers, ensuring durability, reliability, and consistent performance.
